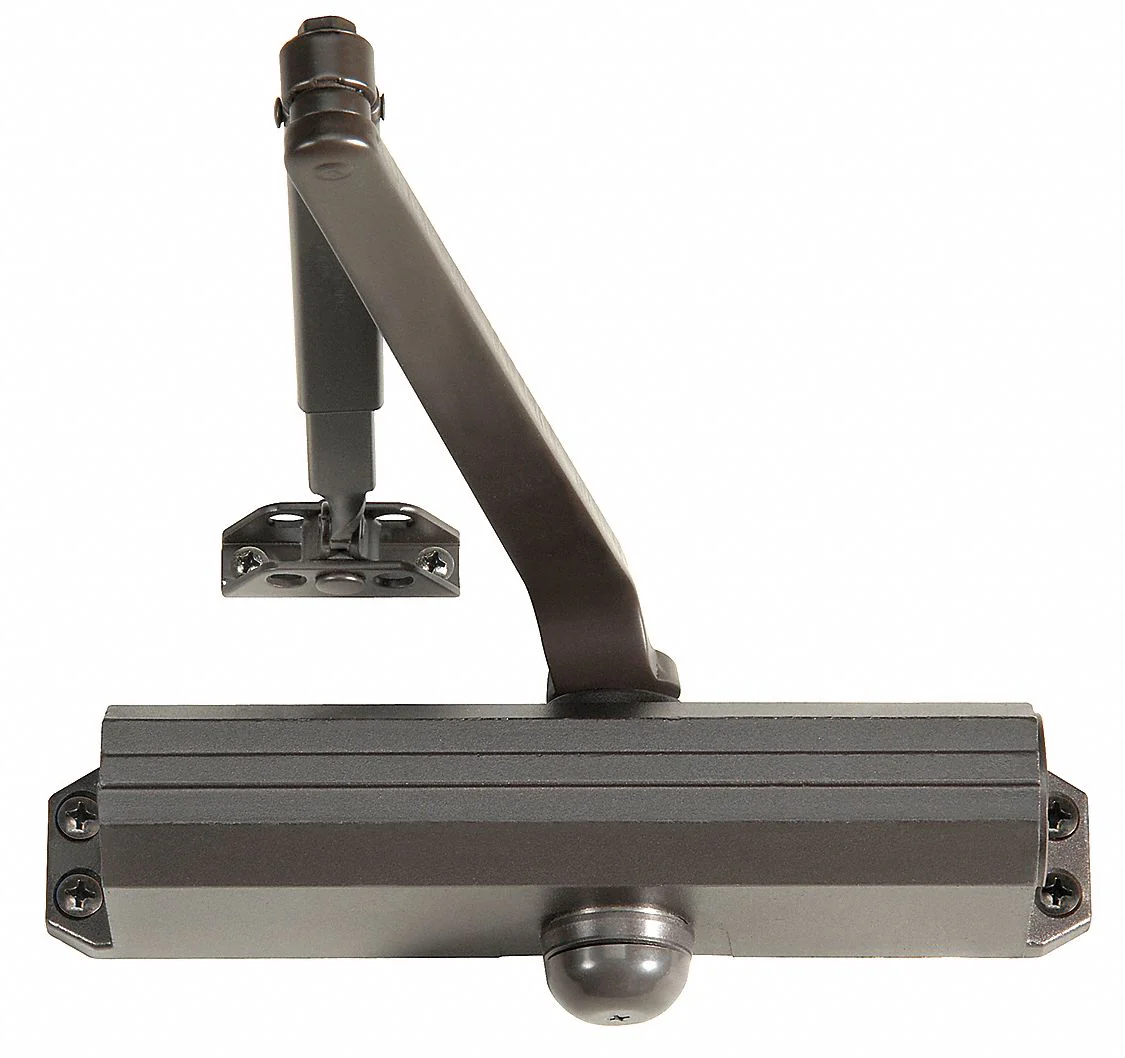

YALE Heavy Duty Top Frame Mounted Door Closer - Bronze Finish
YALE Heavy Duty Bronze Door Closer
Experience the reliability of the YALE Heavy Duty Top Frame Mounted Door Closer, designed for superior performance on exterior doors. Featuring a robust bronze finish, this closer ensures smooth, controlled door operation with its hydraulic system and rack-and-pinion design.
Key Features:
- Top Frame Mounting: Designed for push side installation, maximizing space and ensuring seamless operation.
- Heavy Duty Performance: Grade 1 rating with 25,000,000 cycles for long-lasting durability on heavy doors.
- Adjustable Spring Size: Allows customization to accommodate a wide range of door weights and sizes up to 250 lb.
- Fire-Rated Protection: Boasts a 3-hour UL fire rating, making it ideal for secure, high-stakes environments.
- Hydraulic Control: Utilizes a hydraulic energy source for reliable and smooth door closing every time.
Specifications Table:
| Specification | Details |
|---|---|
| Manufacturer Part Number | 51 X 690 |
| Brand | YALE |
| Closer Mounting Type | Top Frame |
| Closer Series | 51 |
| Closer Type | Non-Hold Open |
| Color | Dark Bronze |
| Compatible with Brand | ACCENTRA |
| Display Qty | 1 |
| Display Sell UOM | EA |
| Max Door Opening Angle | 180 ° |
| Features | Rack and Pinion Design |
| Finish | Bronze |
| Fire Rating | 3 hr |
| Housing Depth | 2-7/8 in |
| Housing Height | 2-5/8 in |
| Energy Source | Hydraulic |
| Includes | Machine Screws |
| Includes Hardware | Hardware Included |
| Door Width Campatibility | 48 in |
| Location Use | Exterior |
| Standards | ANSI/BHMA A156.4 |
| UL Fire Rating | UL10C |
| Spring Type | Adjustable |
| Height Between Mounting Holes | 3/4 in |
| Spring Size - Minimum | 1 |
| Material | Aluminum |
| Door Weight - Maximum | 250 lb |
| Exterior Door Width - Maximum | 48 in |
| Product Type | Door Closer |
| Projection | 2-7/8 in |
| Spring Size | 6 |
| Arm Type | Regular |
| Closer Cycles | 25,000,000 |
| Hand Orientation | Non-Handed |
| Housing Length | 9-3/4 in |
| Operation Style | Manual |
| Performance Duty Rating | 1 |
| Length Between Mounting Holes | 9-1/16 in |
| Ligature Resistance | Not Ligature-Resistant |
| ADA Compliant | No |
| Performance Rating | Grade 1 - Heavy Duty |
| Finish C | Dark Bronze Painted ; Aluminum ; Dark Bronze |
Frequently Asked Questions (FAQ):
Q: How is the door closer installed?
A: The YALE door closer is mounted on the top frame on the push side of the door, requiring standard machine screws which are included in the package.
Q: Is this door closer suitable for exterior doors?
A: Yes, it is specifically designed for exterior doors up to 48 inches wide, providing robust support and durability.
Q: Does the door closer meet any safety standards?
A: Yes, it adheres to ANSI/BHMA A156.4 standards and includes a UL fire rating of 3 hours, ensuring it meets high safety requirements.
Q: Can the closing speed be adjusted?
A: Yes, the hydraulic system allows for adjustable speed settings to match user preference and specific door requirements.
Q: What material is the door closer made from?
A: It is constructed from high-quality aluminum with a resilient dark bronze finish, offering durability and aesthetic appeal.
Eloquent Efficiency: Elevate Entryways with Robust Design
The YALE Heavy Duty Bronze Door Closer transforms any exterior entryway with its sophisticated design and unmatched functionality. Its striking dark bronze finish adds a refined touch, while the top frame mount guarantees seamless integration. Imagine the elegance of a door that closes with grace and precision, enhancing both the security and the aesthetic of your doorway. This door closer is not just a utility; it's a statement piece, indispensable for any space valuing both style and sturdiness.
Ensure reliable and elegant door operation with the YALE Heavy Duty Bronze Door Closer—get yours now for a seamless entry experience.
