Square D QO 20 Amp Single-Pole Circuit Breaker(QO120CP)
Square D QO 20 Amp Single-Pole Circuit Breaker

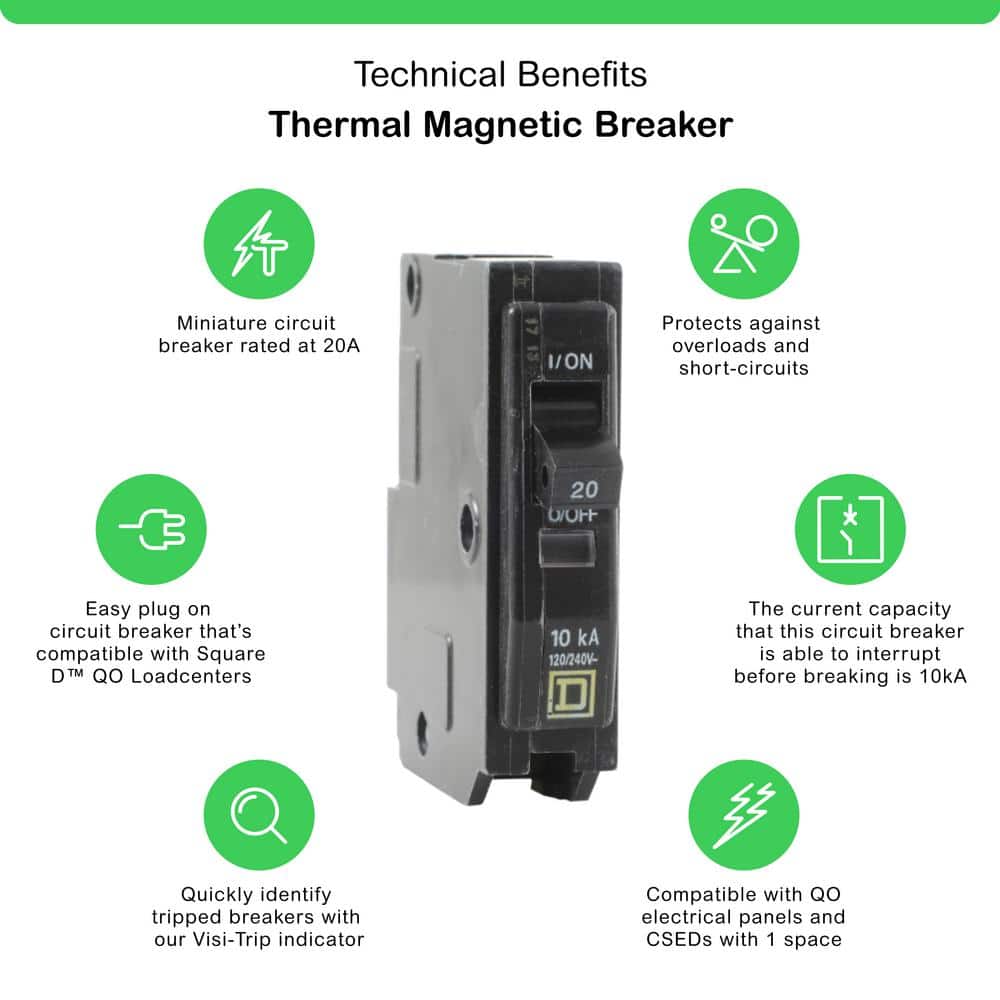

The Square D QO 20 Amp Single-Pole Circuit Breaker provides reliable overload and short-circuit protection for your electrical system. Featuring the unique Visi-Trip indicator, this circuit breaker allows you to quickly identify any tripped circuits. Ideal for use in residential and commercial applications, it's compatible with QO load centers and CSED devices.
Key Features:
- Visi-Trip Indicator: Easily identify tripped breakers with a clear, red signal.
- Thermal-Magnetic Mechanism: Ensures dependable overload and over-current protection.
- Wide Compatibility: Fits QO load centers, CSED devices, and NQOD panel boards.
- Durable Construction: ANSI certified and UL Listed for quality assurance.
- Quick Installation: Designed for plug-on mounting, saving time for contractors.
Please check the Product Data Sheet Here
Specifications Table:
| Specification | Details |
|---|---|
| AIC Rating | 10000 |
| Breaker Type | Standard |
| Connection Type | Non-Neutral |
| Interruption Type | Standard Trip |
| Maximum Amperage (A) | 20 A |
| Mounting Type | Plug-On |
| Number of Poles | Single |
| Number of Spaces | 1 |
| Pack Size | 1 |
| Product Weight (lb.) | 0.28 lb |
| Series Type | QO |
| Trip Unit | Thermal Magnetic |
| Voltage (V) | 120/240 V |
| Certifications and Listings | UL Listed |
| Manufacturer Warranty | Square D warrants its branch circuit breakers to be free from defects in material and workmanship under normal care and proper usage in a residential installation, for the lifetime of the QO load center in which it is installed. |
| Product Depth (in.) | 2.9 in |
| Product Height (in.) | 3 in |
| Product Width (in.) | .75 in |
Frequently Asked Questions (FAQ):
Q: How do I install the Square D QO 20 Amp Circuit Breaker?
A: Installation is straightforward with its plug-on design. Always ensure you follow the manufacturer's installation guide and adhere to local electrical codes.
Q: What is the Visi-Trip indicator feature?
A: The Visi-Trip indicator is a red signal that appears when the breaker trips, making it easy to identify which circuit is affected.
Q: Can this breaker be used in both residential and commercial settings?
A: Yes, this circuit breaker is suitable for both residential and commercial applications, as long as it fits with compatible QO panels.
Q: What is the warranty on this circuit breaker?
A: Square D offers a lifetime warranty against defects in material and workmanship when used under normal residential conditions and with QO load centers.
Q: Is this circuit breaker compatible with other brands?
A: This breaker is specifically designed for use with Square D QO load centers and may not fit other brands' panels securely.
Streamlined Protection for Peaceful Comfort
The Square D QO 20 Amp Circuit Breaker is a discreet yet powerful component that elevates the safety of your home. Its compact design integrates seamlessly within any electrical panel while the Visi-Trip indicator adds a pop of functional brilliance. Imagine a worry-free environment where this tiny guardian stands sentinel, shielding your home with undetectable efficiency. A true testament to luxurious, carefree living, ensuring peace of mind and an uninterrupted, serene atmosphere.
Ensure the safety and reliability of your electrical system by choosing the Square D QO 20 Amp Circuit Breaker today.
