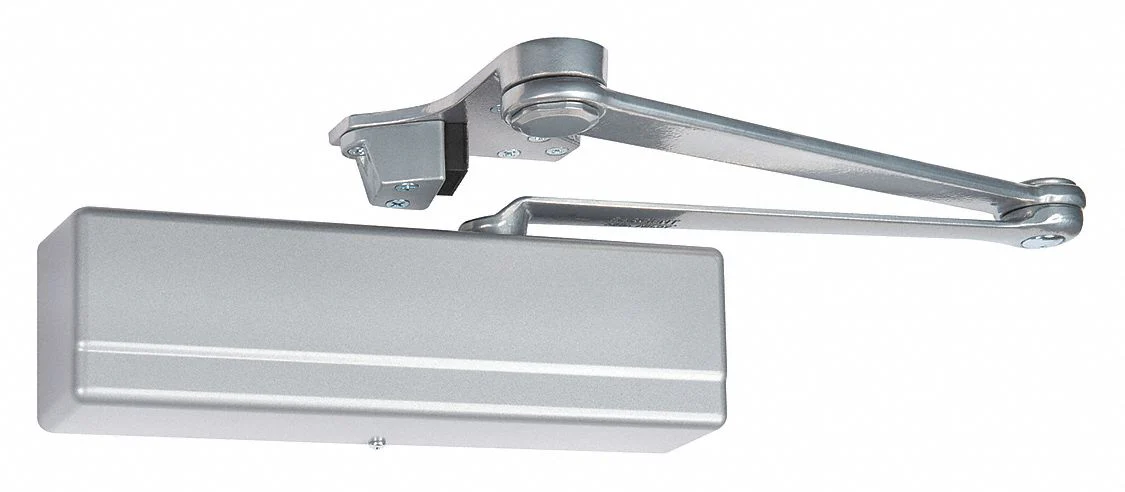

Heavy Duty Parallel Mount Door Closer

The SARGENT Heavy Duty Door Closer embodies precision and durability with its Grade 1 quality and sleek parallel arm mounting, designed for both aesthetic appeal and rigorous use. Engineered from aluminum with a hydraulic energy source, it ensures seamless operation for interior or exterior doors, handling up to 25 million cycles effortlessly.

---

Key Features:

• Heavy Duty Performance: Designed for demanding environments with a Grade 1 rating, handling up to 25 million cycles.
• Sleek Design: Parallel arm folds into itself for an understated aesthetic appeal, ideal for modern interiors.
• Adjustable Spring Tension: Offers control over closing speed and strength, suited for varying door weights and sizes.
• Easy Installation: Includes self-sticking templates and all necessary hardware, simplifying the installation process.
• Fire Safety Certified: UL and cUL listed with a 3-hour fire rating, ensuring safety compliance.

---

Specifications Table:

Specification	Details
Manufacturer Part Number	1431-CPS-EN
Brand	SARGENT
Closer Mounting Type	Parallel
Closer Series	1431
Closer Type	Non-Hold Open
Color	Gray
Compatible with Brand	Sargent
Display Qty	1
Display Sell UOM	EA
Max Door Opening Angle	180 °
Door Opening - Minimum	85 °
Features	Self Sticking Templates
Finish	Aluminum
Fire Rating	3 hr
Housing Depth	2-1/4 in
Housing Height	3-3/8 in
Energy Source	Hydraulic
Includes	Cushion Stop
Includes Hardware	Hardware Included
Door Width Campatibility	48 in
Location Use	Interior/Exterior
Standards	UL and cUL Listed
UL Fire Rating	UL10C
Spring Type	Adjustable
Height Between Mounting Holes	1 in
Spring Size - Minimum	1
Material	Aluminum
Exterior Door Width - Maximum	48 in
Product Type	Door Closer
Projection	2-1/4 in
Spring Size	6
Arm Type	Parallel
Closer Cycles	25,000,000
Hand Orientation	Non-Handed
Housing Length	12 in
Operation Style	Manual
Performance Duty Rating	1
Length Between Mounting Holes	11-1/8 in
Ligature Resistance	Not Ligature-Resistant
ADA Compliant	Yes
Performance Rating	Grade 1 - Heavy Duty
Finish C	Aluminum Painted ; Aluminum ; Gray

---

Frequently Asked Questions (FAQ):

Q: How is the SARGENT Door Closer installed?
A: This door closer features a parallel arm mount, attaching to the push side of the door with an intuitive installation process using self-sticking templates.

---

Q: Is this door closer suitable for exterior doors?
A: Yes, the SARGENT Door Closer is versatile for both interior and exterior applications, withstanding diverse environmental conditions.

---

Q: What fire safety certifications does this product have?
A: The door closer is UL and cUL listed with a 3-hour fire rating, adhering to stringent safety standards.

---

Q: Can the closing speed be adjusted?
A: Yes, this product features adjustable spring tension, allowing you to customize the closing speed and effort to match your specific door requirements.

---

Q: What is the lifespan of this door closer?
A: Engineered for longevity, it is rated to perform up to 25 million cycles, ensuring reliable long-term use in high-traffic areas.

---
