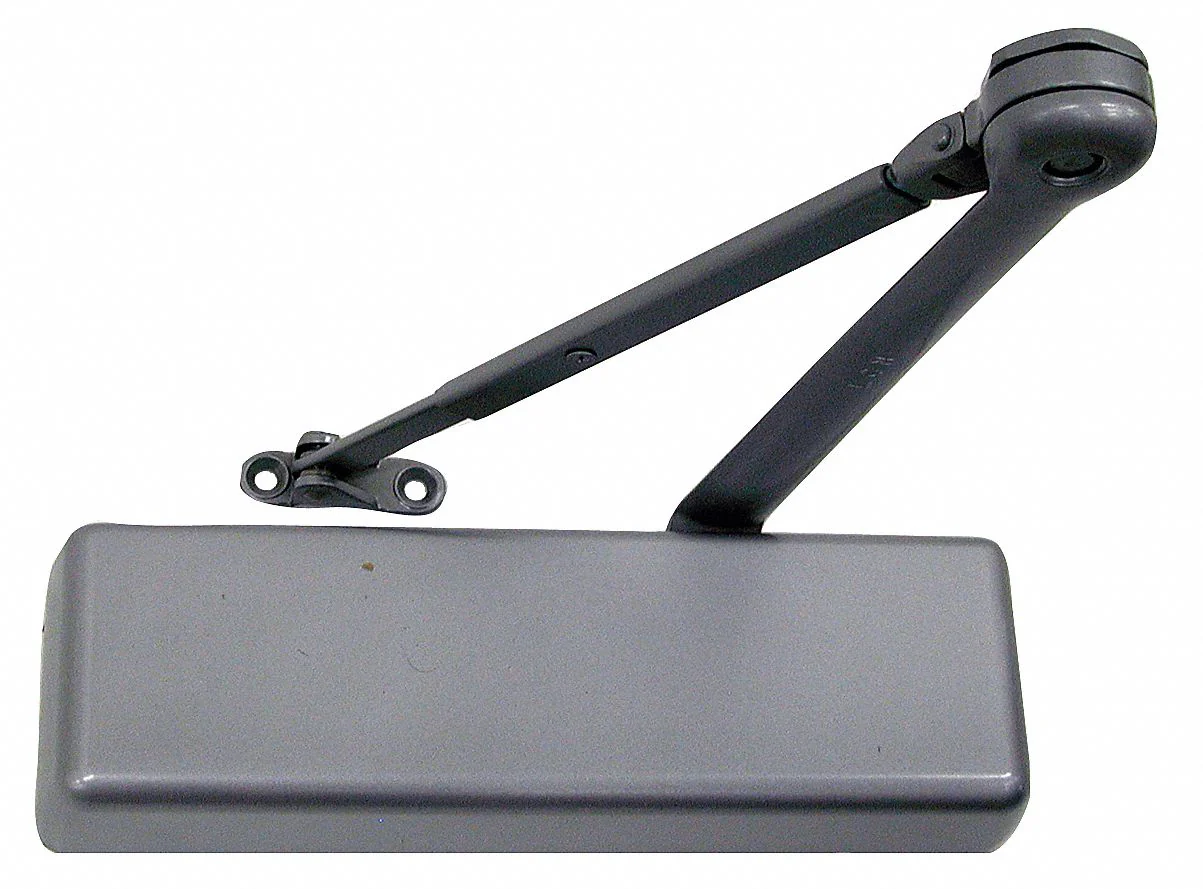

LCN Heavy Duty Grade 1 Door Closer - Top Frame Mount, Aluminum
LCN Top Frame Mount Door Closer
Ensure reliability and performance with the LCN Grade 1 Heavy Duty Door Closer. This top frame mount closer features durable hydraulic technology for effective control of door closing. Ideal for both interior and exterior use, it accommodates doors up to 54 inches wide.
Key Features:
- Top Frame Mount: Easily attaches to the top of the door frame, ideal for spaces with limited door surface area.
- Heavy Duty Performance: Grade 1 rated for high-traffic environments, ensuring long-lasting durability.
- Adjustable Spring: Offers customizable closing power from size 1 to 6, accommodating various door sizes and weights.
- Hydraulic Control: Provides smooth and consistent operation, featuring a regular arm type and a right-handed orientation.
- Complete Kit: Includes all necessary hardware, including self-drilling screws, for hassle-free installation.
Specifications Table:
| Specification | Details |
|---|---|
| Manufacturer Part Number | 4011-H RH AL |
| Brand | LCN |
| Closer Mounting Type | Top Frame |
| Closer Series | 4010 |
| Closer Stop Type | Spring |
| Closer Type | Hold Open |
| Color | Gray |
| Display Qty | 1 |
| Display Sell UOM | EA |
| Max Door Opening Angle | 140 ° |
| Features | Application Specific Handed |
| Finish | Aluminum |
| Housing Depth | 2-1/4 in |
| Housing Height | 3-1/2 in |
| Energy Source | Hydraulic |
| Includes | Self Drilling Screws |
| Includes Hardware | Hardware Included |
| Door Width Campatibility | 54 in |
| Location Use | Interior/Exterior |
| Standards | UL and cUL Listed |
| Spring Type | Adjustable |
| Height Between Mounting Holes | 2-1/2 in |
| Spring Size - Minimum | 1 |
| Material | Cast Iron |
| Exterior Door Width - Maximum | 42 in |
| Product Type | Door Closer |
| Projection | 2-1/4 in |
| Spring Size | 6 |
| Arm Type | Regular |
| Hand Orientation | Right-Handed |
| Housing Length | 12-1/4 in |
| Operation Style | Manual |
| Performance Duty Rating | 1 |
| Length Between Mounting Holes | 6 in |
| ADA Compliant | Yes |
| Performance Rating | Grade 1 - Heavy Duty |
| Finish C | Aluminum Painted ; Cast Iron ; Gray |
Frequently Asked Questions (FAQ):
Q: How do I install this door closer?
A: The LCN Door Closer comes with self-drilling screws for quick installation on the top frame of the door. Follow the included instructions to ensure proper alignment and operation.
Q: Is this door closer suitable for exterior doors?
A: Yes, this door closer is suitable for both interior and exterior doors. It is designed to handle heavy duty performance, making it ideal for high-traffic areas.
Q: Can the closing force be adjusted?
A: Yes, the LCN Door Closer features an adjustable spring mechanism, allowing you to customize the closing force from size 1 to 6 to fit your specific needs.
Q: What is the maximum door width this closer can accommodate?
A: This door closer can accommodate doors up to 54 inches wide, making it versatile for various applications.
Q: Is it ADA compliant?
A: Yes, the LCN Door Closer is ADA compliant, ensuring accessibility standards are met.
Elevate Every Entrance with Robust Elegance
Transform entrances with the LCN Heavy Duty Door Closer, a perfect blend of function and elegance. Its sleek aluminum finish complements any style from modern to traditional. Picture it seamlessly integrated into your high-traffic commercial space, offering both sophistication and reliability. Essential for those who desire function without sacrificing style, this door closer ensures a graceful closure to every passageway.
Upgrade to the LCN Heavy Duty Door Closer today for unmatched durability and smooth, reliable door operation.
LCN Top Frame Mount Door Closer
Ensure reliability and performance with the LCN Grade 1 Heavy Duty Door Closer. This top frame mount closer features durable hydraulic technology for effective control of door closing. Ideal for both interior and exterior use, it accommodates doors up to 54 inches wide.
Key Features:
- Top Frame Mount: Easily attaches to the top of the door frame, ideal for spaces with limited door surface area.
- Heavy Duty Performance: Grade 1 rated for high-traffic environments, ensuring long-lasting durability.
- Adjustable Spring: Offers customizable closing power from size 1 to 6, accommodating various door sizes and weights.
- Hydraulic Control: Provides smooth and consistent operation, featuring a regular arm type and a right-handed orientation.
- Complete Kit: Includes all necessary hardware, including self-drilling screws, for hassle-free installation.
Specifications Table:
| Specification | Details |
|---|---|
| Manufacturer Part Number | 4011-H RH AL |
| Brand | LCN |
| Closer Mounting Type | Top Frame |
| Closer Series | 4010 |
| Closer Stop Type | Spring |
| Closer Type | Hold Open |
| Color | Gray |
| Display Qty | 1 |
| Display Sell UOM | EA |
| Max Door Opening Angle | 140 ° |
| Features | Application Specific Handed |
| Finish | Aluminum |
| Housing Depth | 2-1/4 in |
| Housing Height | 3-1/2 in |
| Energy Source | Hydraulic |
| Includes | Self Drilling Screws |
| Includes Hardware | Hardware Included |
| Door Width Campatibility | 54 in |
| Location Use | Interior/Exterior |
| Standards | UL and cUL Listed |
| Spring Type | Adjustable |
| Height Between Mounting Holes | 2-1/2 in |
| Spring Size - Minimum | 1 |
| Material | Cast Iron |
| Exterior Door Width - Maximum | 42 in |
| Product Type | Door Closer |
| Projection | 2-1/4 in |
| Spring Size | 6 |
| Arm Type | Regular |
| Hand Orientation | Right-Handed |
| Housing Length | 12-1/4 in |
| Operation Style | Manual |
| Performance Duty Rating | 1 |
| Length Between Mounting Holes | 6 in |
| ADA Compliant | Yes |
| Performance Rating | Grade 1 - Heavy Duty |
| Finish C | Aluminum Painted ; Cast Iron ; Gray |
Frequently Asked Questions (FAQ):
Q: How do I install this door closer?
A: The LCN Door Closer comes with self-drilling screws for quick installation on the top frame of the door. Follow the included instructions to ensure proper alignment and operation.
Q: Is this door closer suitable for exterior doors?
A: Yes, this door closer is suitable for both interior and exterior doors. It is designed to handle heavy duty performance, making it ideal for high-traffic areas.
Q: Can the closing force be adjusted?
A: Yes, the LCN Door Closer features an adjustable spring mechanism, allowing you to customize the closing force from size 1 to 6 to fit your specific needs.
Q: What is the maximum door width this closer can accommodate?
A: This door closer can accommodate doors up to 54 inches wide, making it versatile for various applications.
Q: Is it ADA compliant?
A: Yes, the LCN Door Closer is ADA compliant, ensuring accessibility standards are met.
Elevate Every Entrance with Robust Elegance
Transform entrances with the LCN Heavy Duty Door Closer, a perfect blend of function and elegance. Its sleek aluminum finish complements any style from modern to traditional. Picture it seamlessly integrated into your high-traffic commercial space, offering both sophistication and reliability. Essential for those who desire function without sacrificing style, this door closer ensures a graceful closure to every passageway.
Upgrade to the LCN Heavy Duty Door Closer today for unmatched durability and smooth, reliable door operation.
