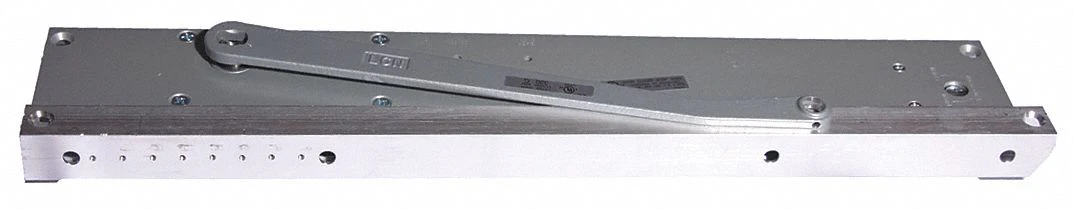

LCN 2030 Series Concealed Mount Door Closer - Grade 1
LCN Concealed Mount Door Closer - Grade 1
The LCN Concealed Mount Door Closer is ideal for projects requiring a blend of functionality and aesthetics. This Grade 1 heavy-duty closer is designed for interior and exterior doors, featuring a concealed installation for a sleek appearance. With an adjustable hydraulic spring and a durable cast iron construction, it ensures reliable performance.
Key Features:
- Concealed Mounting: Ensures a clean look by tucking the closer arm underneath the frame.
- Grade 1 Heavy Duty: Engineered for demanding environments and frequent use.
- Durable Construction: Made from high-quality cast iron with an aluminum finish for longevity.
- Adjustable Spring: Allows for customization of door closing speed and force.
- ADA Compliant: Meets accessibility standards, suitable for commercial and public buildings.
Specifications Table:
| Specification | Details |
|---|---|
| Manufacturer Part Number | 2033-STD RH AL |
| Brand | LCN |
| Closer Mounting Type | Concealed |
| Closer Series | 2030 |
| Closer Stop Type | Spring |
| Closer Type | Non-Hold Open |
| Color | Gray |
| Display Qty | 1 |
| Display Sell UOM | EA |
| Max Door Opening Angle | 100 ° |
| Door Opening - Minimum | 85 ° |
| Features | 1-1/8 in dia Piston |
| Finish | Aluminum |
| Housing Depth | 3-3/4 in |
| Housing Height | 1-3/8 in |
| Energy Source | Hydraulic |
| Includes | Finish Plate |
| Location Use | Interior/Exterior |
| Standards | UL and cUL Listed |
| UL Fire Rating | UL10C |
| Spring Type | Adjustable |
| Spring Size - Minimum | 1 |
| Material | Cast Iron |
| Product Type | Door Closer |
| Spring Size | 5 |
| Arm Type | Track |
| Hand Orientation | Right-Handed |
| Housing Length | 22-1/2 in |
| Operation Style | Manual |
| Performance Duty Rating | 1 |
| Ligature Resistance | Not Ligature-Resistant |
| ADA Compliant | Yes |
| Performance Rating | Grade 1 - Heavy Duty |
| Finish C | Aluminum Painted ; Cast Iron ; Gray |
Frequently Asked Questions (FAQ):
Q: How is the door closer installed?
A: The LCN Concealed Mount Door Closer is installed within the door frame, with the arm hidden beneath for a sleek, unobtrusive look. It requires precise cutting into the door and frame, best performed by a professional.
Q: Is this closer suitable for exterior doors?
A: Yes, this door closer is suitable for both interior and exterior doors, providing robust performance and durability.
Q: How does the hydraulic system benefit the door closer?
A: The hydraulic system offers smooth, controlled door closing functionality, which helps in managing the door's speed and force effectively.
Q: Can this closer be used on fire-rated doors?
A: Yes, it is UL10C rated, meaning it can be used on fire-rated doors, providing enhanced safety in the event of a fire.
Q: What is the maximum door opening angle?
A: This model allows for a maximum door opening angle of 100 degrees, suitable for many commercial applications.
Sleek Discretion Meets Functionality
Transform any space with the understated elegance of the LCN Concealed Mount Door Closer. Its hidden arm allows the beauty of your door to take center stage, without sacrificing the robust functionality expected in high-use environments. Imagine a seamless flow created by this unobtrusive closer, perfect for maintaining the aesthetic of modern or minimalist interiors. Whether restoring a historical building or outfitting a chic contemporary space, this closer is the embodiment of subtle luxury and practicality.
Upgrade your space with the seamless functionality and sleek design of the LCN Concealed Mount Door Closer—order yours today!
