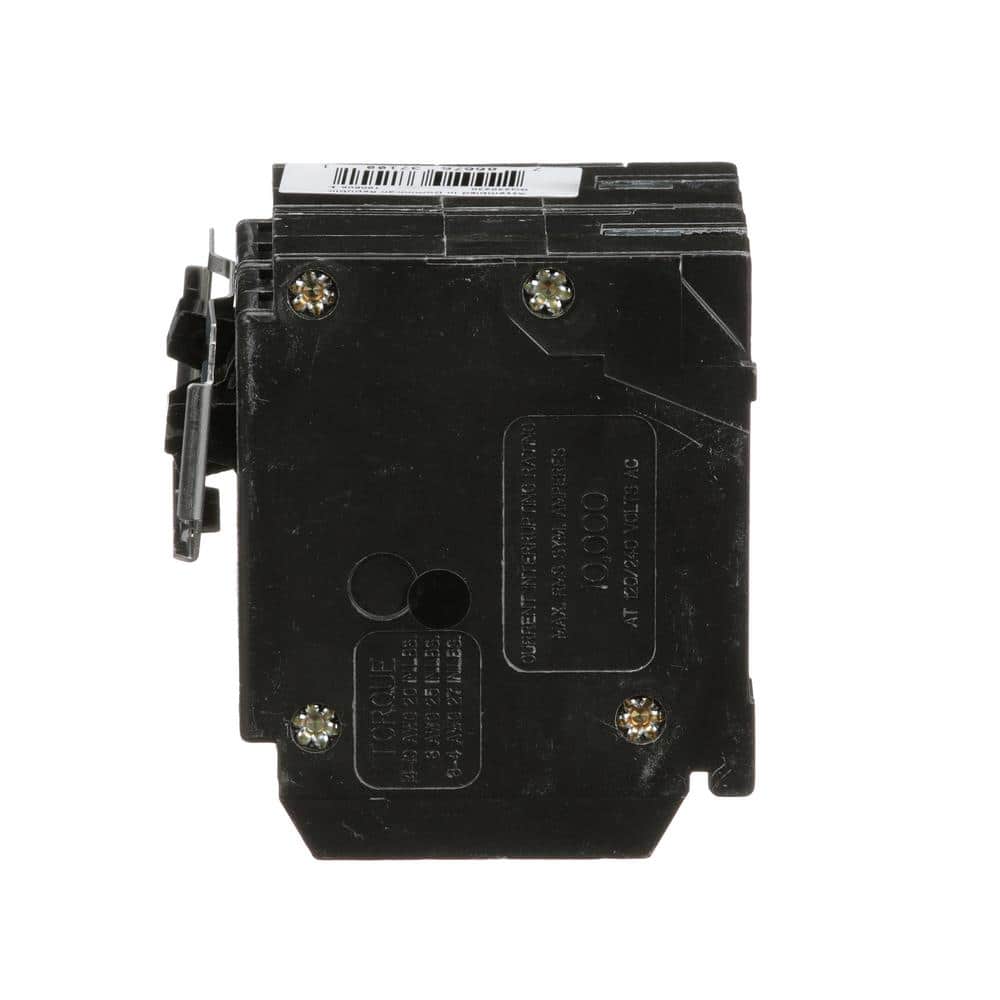

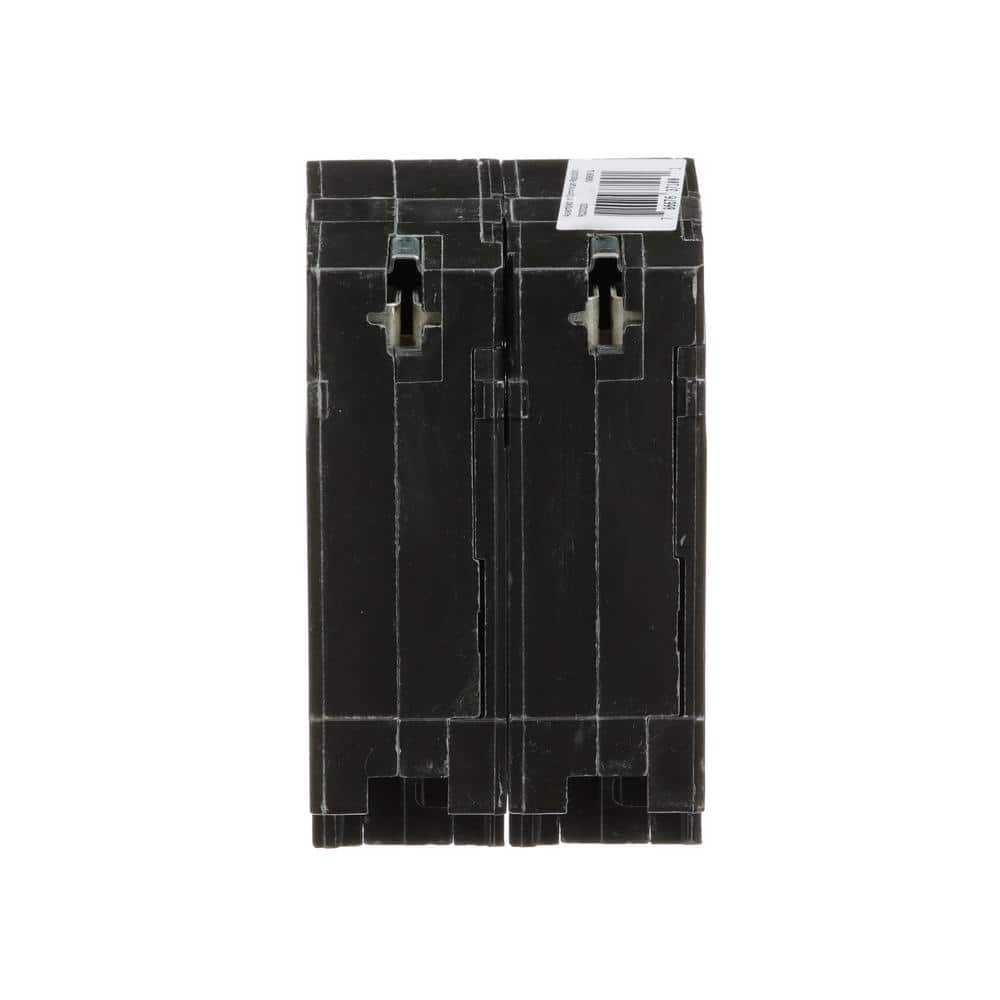

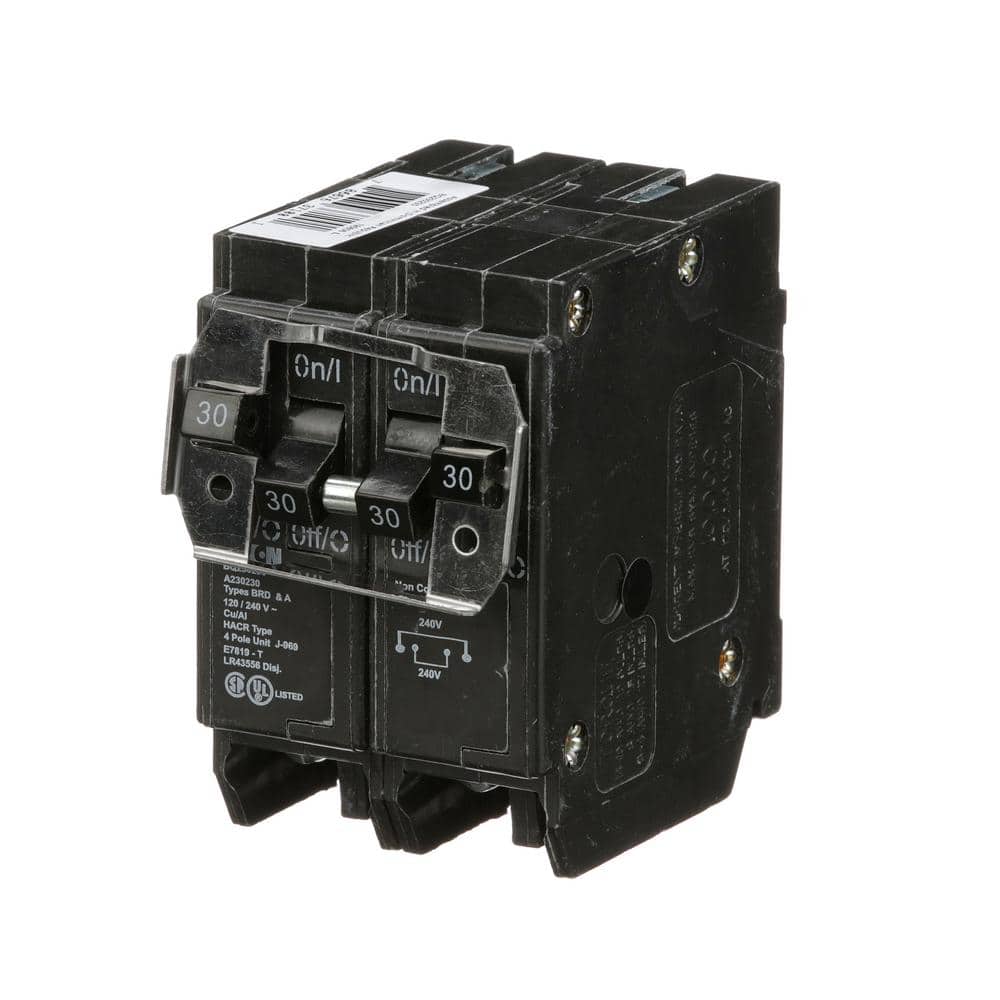

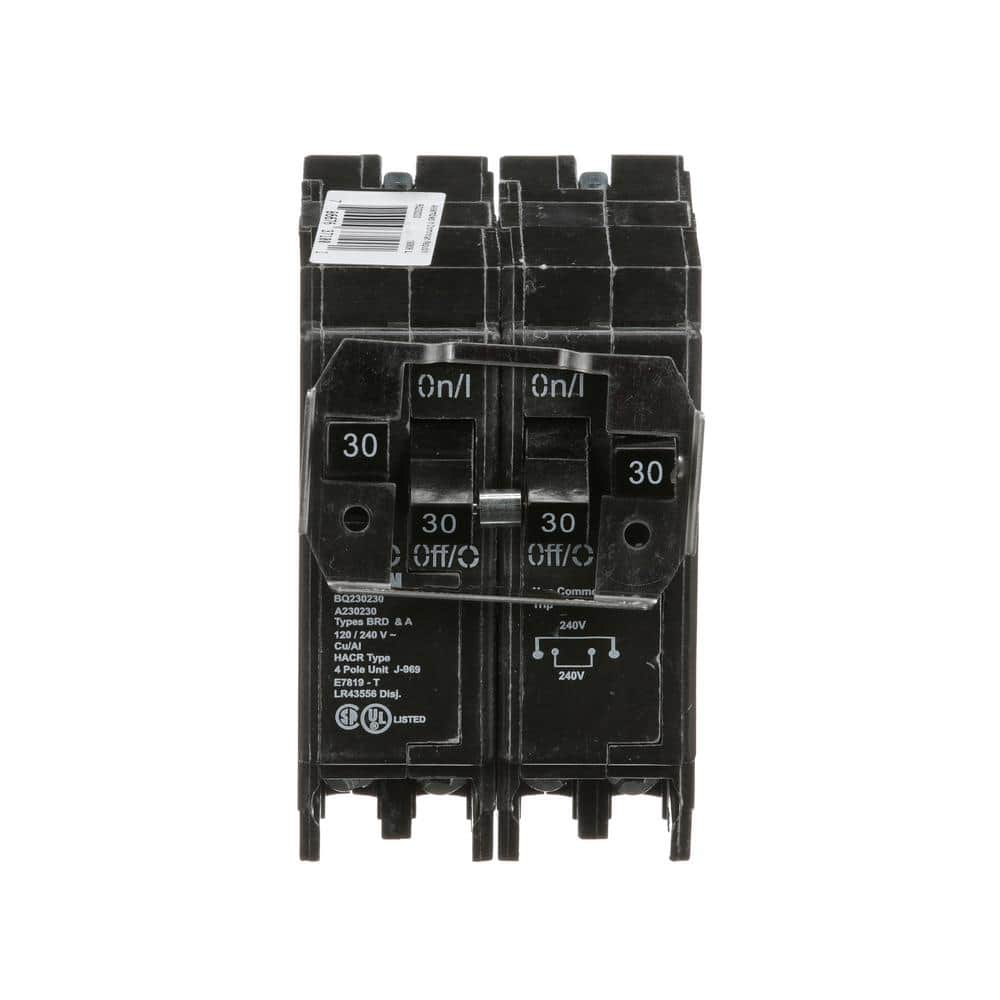

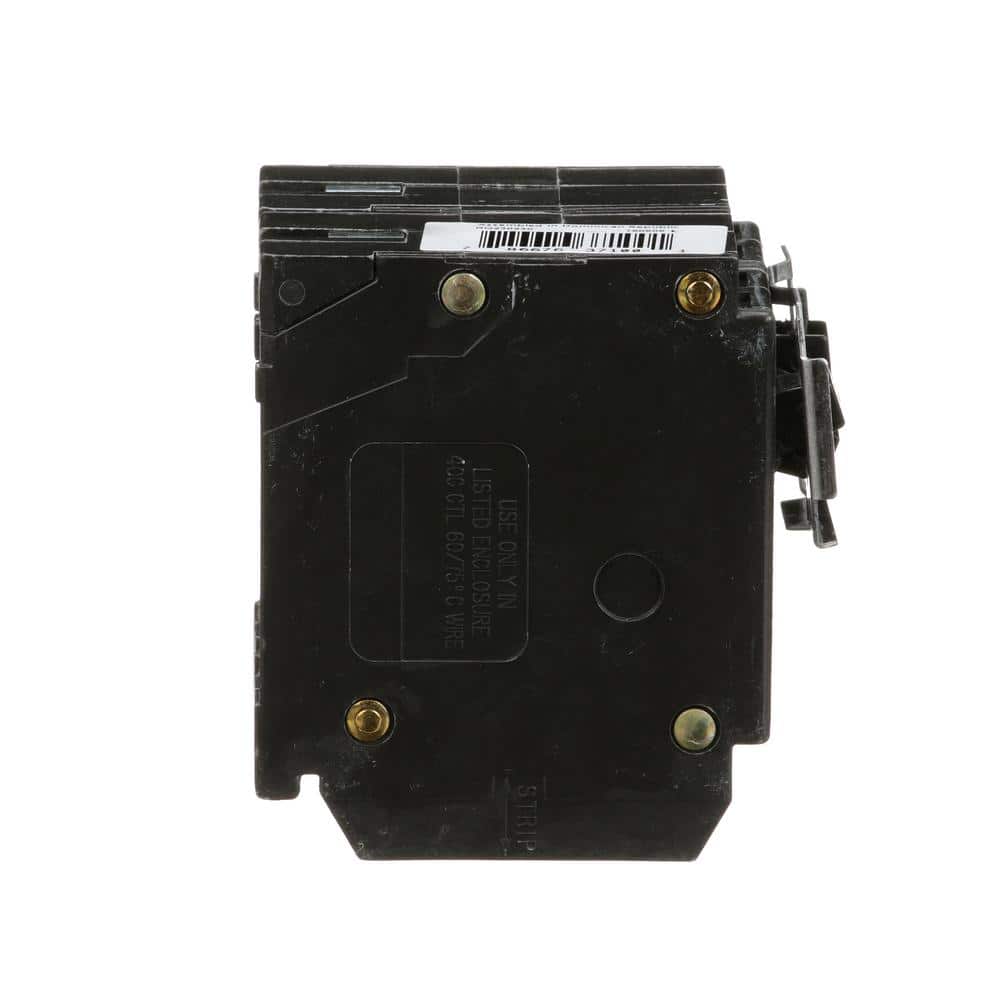

Eaton BR 2-30 Amp 2 Pole BQ (Independent Trip) Quad Circuit Breaker
Eaton BR Quad Circuit Breaker with Independent Trip
The Eaton BR Quad Circuit Breaker is engineered for ultimate protection and versatility in both residential and commercial applications. Featuring a 2-30 Amp dual pole configuration, its independent trip technology and rejection tab feature ensure safe and reliable power management, fitting seamlessly in BR load centers. Ideal for creating four circuits in two spaces, this breaker supports demanding electrical setups with ease.
Key Features:
- Independent Trip Technology: Allows for safer, controlled circuit interruption.
- Quad Configuration: Creates four circuits using just two panel spaces, optimizing load center use.
- Voltage Support: Handles 120/240V circuits, ideal for comprehensive electrical needs.
- Durable Construction: Constructed to meet UL, ANSI, and CSA standards for quality assurance.
- Versatile Compatibility: Designed for use with BR-type load centers, including Westinghouse and Bryant.
Please check the Product Data Sheet Here
Specifications Table:
| Specification | Details |
|---|---|
| AIC Rating | 10000 |
| Amperage (A) | 30 A |
| Breaker Type | Tandem |
| Connection Type | Neutral |
| Interruption Type | Standard Trip |
| Mounting Type | Plug-On |
| Number of Poles | Quad |
| Number of Spaces | 2 |
| Pack Size | 1 |
| Power Distribution Features | No Additional Features |
| Product Weight (lb.) | 0.79 lb |
| Series Type | BR |
| Trip Unit | Thermal Magnetic |
| Voltage (V) | 120/240 V |
| Certifications and Listings | ANSI Certified,CSA Listed,UL Listed |
| Manufacturer Warranty | 10 years per the Warranty Policy |
| Product Depth (in.) | 2.884 in |
| Product Height (in.) | 3.105 in |
| Product Width (in.) | 1.97 in |
Frequently Asked Questions (FAQ):
Q: How does the independent trip feature work?
A: The independent trip feature allows each circuit to trip separately in case of overload or faults, ensuring optimal control and safety.
Q: Can this circuit breaker be used in any brand's load center?
A: This breaker is designed specifically for BR type load centers and is compatible with brands like Westinghouse, Challenger, and Bryant.
Q: What are the installation requirements for this circuit breaker?
A: Ensure the panel has notched bus stabs to accommodate the rejection clip, and follow standard installation procedures for BR load centers.
Q: Is this breaker suitable for high-demand applications?
A: Yes, it supports circuits up to 240 volts and 30 amps, making it suitable for various residential and light commercial applications.
Q: What is the significance of the rejection tab feature?
A: The rejection tab ensures the breaker is correctly matched to compatible panel slots, preventing improper installation.
Empower Your Electrical Design with Confidence
Elevate the functionality and safety of your electrical spaces with the Eaton BR Quad Circuit Breaker. As a crucial element in sophisticated power management, its independent trip mechanism enhances both reliability and performance. Install this breaker to create a seamless, powerful electrical narrative in any professional or residential setting. In the world of elegant, efficient living, the Eaton Circuit Breaker is your go-to for assured luxury and safety.
Ensure robust power management in your projects; upgrade to the Eaton BR Quad Circuit Breaker today to enhance safety and efficiency.
