Eaton BR 100 Amp 40-Circuit Main Breaker Indoor Plug On Neutral Load Center Contractor Breaker Kit ((2) BR120 and (1) BR230)
100 Amp Indoor Plug-On Neutral Load Center
The Eaton BR 100 Amp 40-Circuit Main Breaker Indoor Load Center offers streamlined operations for professionals. With its innovative plug-on neutral design, this panel reduces installation time significantly, making professional-grade electrical work more efficient. Its durable and easy-to-install features promise a neat and robust setup.
Key Features:
- Optimized Design: Plug-on neutral design eliminates the need for pigtail connections, saving time and reducing clutter.

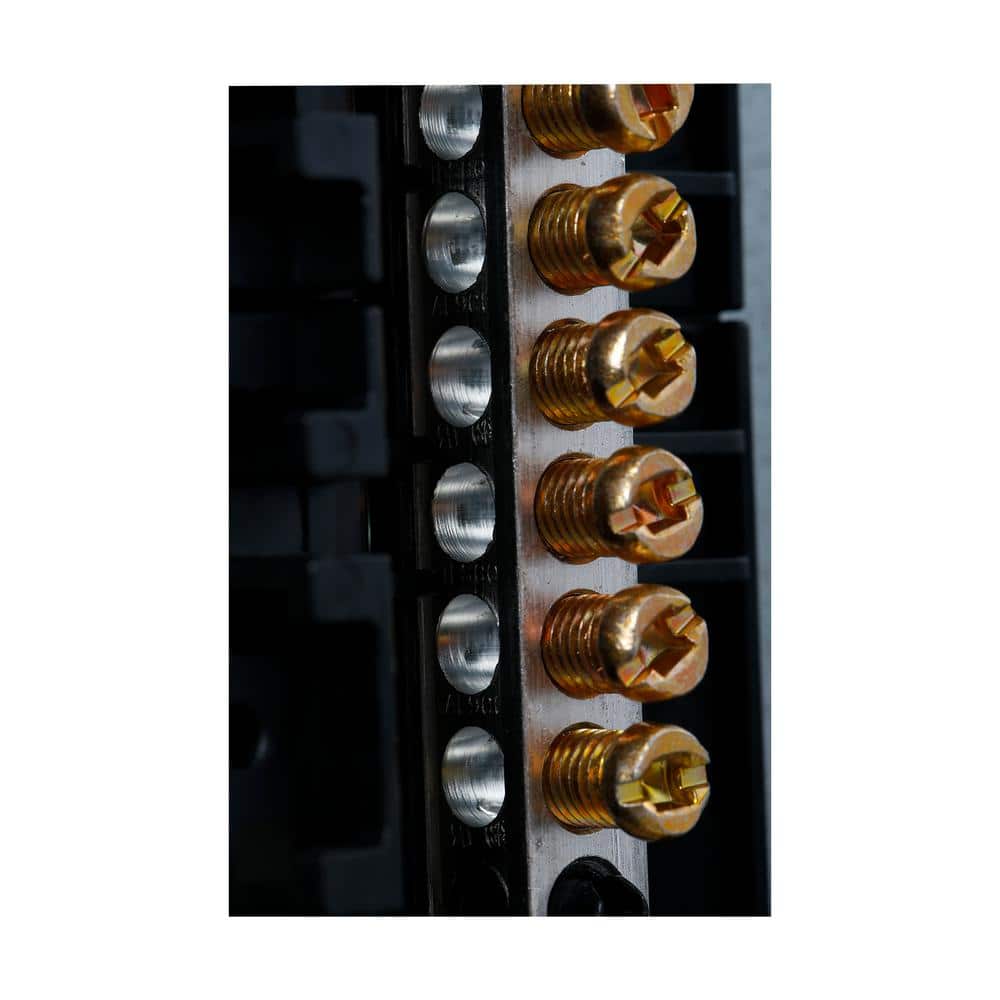

- Professional Installation: In-board neutral bar increases gutter space for a clean conductor setup.
- User-Friendly Features: Self-leveling tabs simplify drywall offsets, and the keyhole hanging feature makes cover installation easier.
- Durable Cover: Includes a rigid cover spine for enhanced strength during cover removal and installation.
- High Performance: Supports up to 100 Amps with 40 circuits and includes a NEMA 1 enclosure for indoor use.
Specifications Table:
| Specification | Details |
|---|---|
| Breaker Box Type | Main Breaker Panel |
| Connection Type | Neutral |
| Included | No Additional Items Included |
| Indoor/Outdoor | Indoor |
| Maximum Amperage (A) | 100 A |
| Mounting Type | Flush |
| NEMA Configuration | NEMA 1 |
| Number of Circuits | 40 |
| Number of Pieces | 4 |
| Number of Spaces | 20 |
| Product Weight (lb.) | 26.5 lb |
| Series Type | BR |
| Voltage (V) | 120/240 V |
| Certifications and Listings | UL Listed |
| Manufacturer Warranty | 10 Year Per Warranty Statement |
| Product Depth (in.) | 24.75 in |
| Product Height (in.) | 4.25 in |
| Product Width (in.) | 16 in |
Frequently Asked Questions (FAQ):
Q: How does the plug-on neutral design benefit installation?
A: The plug-on neutral design eliminates the need for pigtail connections, making the installation quicker and reducing clutter inside the panel.
Q: Can this load center be used for both top and bottom fed applications?
A: Yes, it features a keyhole hanging design that supports both top and bottom fed applications, enhancing its versatility.
Q: What type of breakers are compatible with this panel?
A: The panel is designed for use with Eaton's type BR 1 in. breakers, accommodating a range of protection needs.
Q: Is the breaker box watertight?
A: No, this load center is rated for indoor use only as a NEMA 1 enclosure and is not designed to be watertight.
Q: What size of wire can be used with this system?
A: The load center accommodates wire sizes ranging from #4 to 1/0 AWG for copper or aluminum conductors.
Sleek Efficiency Meets Robust Functionality
Envision a space where efficiency meets elegance with Eaton's streamlined load center. Its sleek design not only tames the chaos of electrical wiring but transforms any utility space into a haven of order and professionalism. Featuring self-leveling tabs and a keyhole hanging system, this panel blends seamlessly into drywall surroundings, ensuring a flawless, flush mount appearance. For the discerning designer, pairing this load center with chic cabinetry updates the mundane to magnificent — making it a quintessential aspect of sophisticated functionality.
Discover the efficiency of the Eaton BR Load Center and simplify your next electrical project with seamless installation and professional-grade performance.
