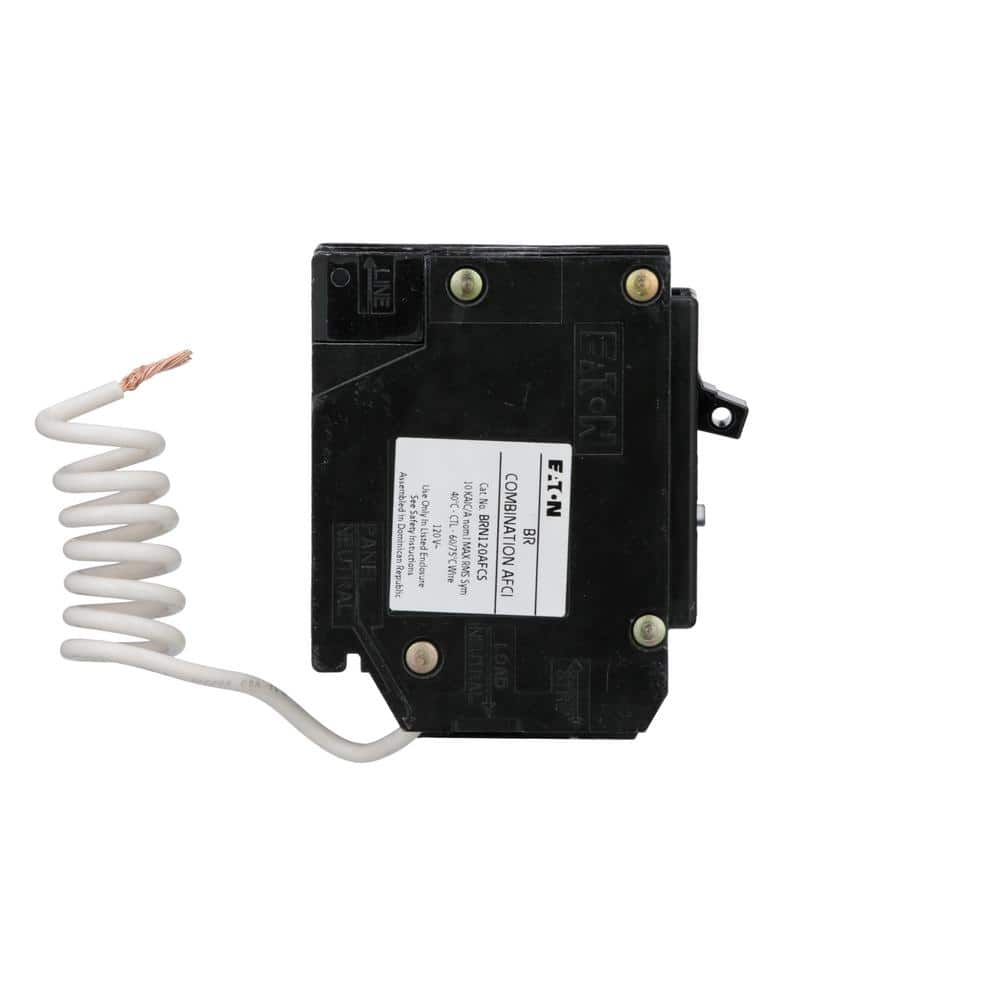

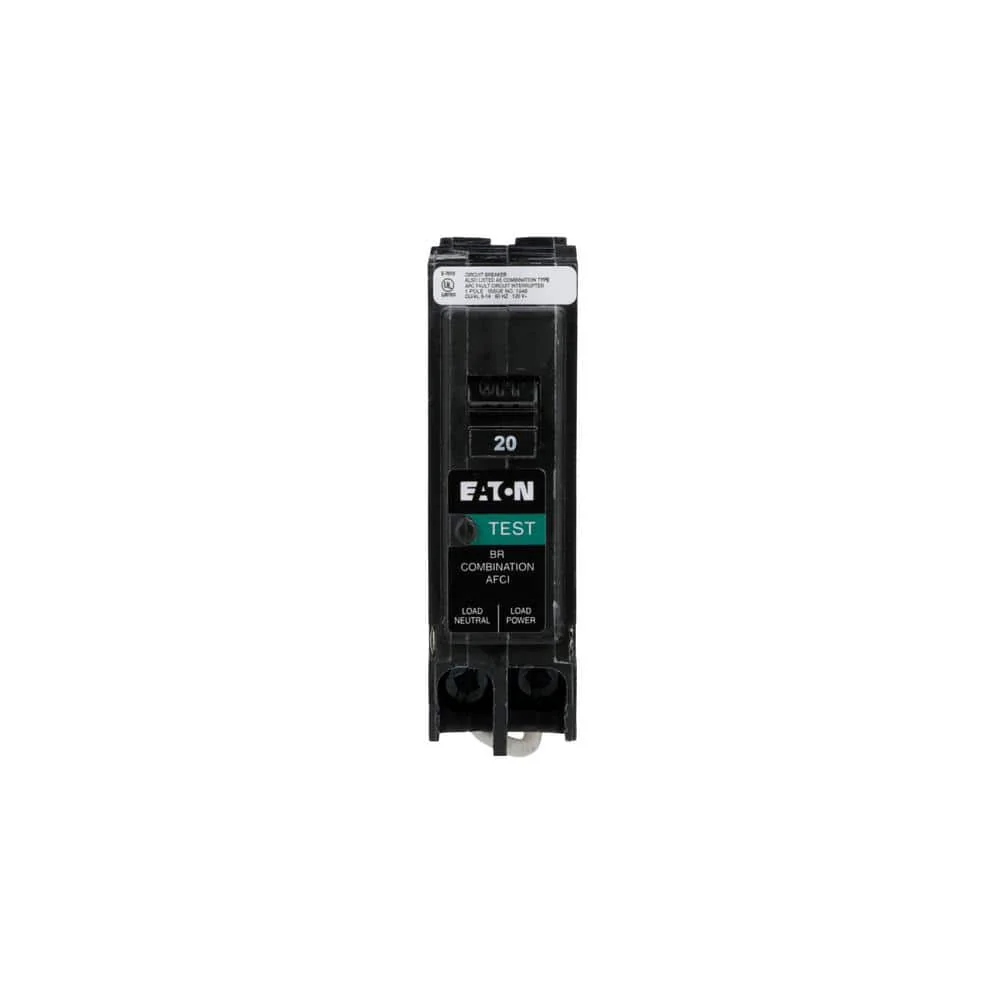

Eaton 20 Amp 120-Volt, Single-Pole AFCI Circuit Breaker Type BR Pigtail Neutral
Eaton 20 Amp AFCI Circuit Breaker
The Eaton 20 Amp AFCI Circuit Breaker offers advanced electronic technology to safeguard electrical circuits against overheating and short-circuits. Designed for compatibility with Type BR load centers, this single-pole breaker ensures fire hazard reduction through persistent arcing fault detection. Enhance your circuit protection with Eaton's reliable performance and ease of installation.
Key Features:
- Advanced Technology: Utilizes cutting-edge electronics to prevent overheating and short-circuits, reducing fire risks.
- Compact Design: Features a user-friendly compact design for easier wiring and improved wire access.
- Reliable Arc-Fault Detection: Proactively detects low-current arcing faults down to 5A, ensuring efficiency in preventing fire hazards.
- LED Trip Indicator: Integrated LED shows seven different trip causes, streamlining troubleshooting.
- Versatile Use: Suitable for Type BR load centers, and ideal for heating, air conditioning, and refrigeration applications.
Specifications Table:
| Specification | Details |
|---|---|
| AIC Rating | 10000 |
| Breaker Type | Standard |
| Connection Type | Pigtail |
| Interruption Type | AFCI |
| Maximum Amperage (A) | 20 A |
| Mounting Type | Plug-On |
| Number of Poles | Single |
| Pack Size | 1 |
| Product Weight (lb.) | .50 lb |
| Series Type | BR |
| Trip Unit | Electronic |
| Voltage (V) | 120 V |
| Certifications and Listings | UL Listed |
| Manufacturer Warranty | 1 year limited |
| Product Depth (in.) | 1.13 in |
| Product Height (in.) | 7.63 in |
| Product Width (in.) | 4.10 in |
Frequently Asked Questions (FAQ):
Q: How do you install the Eaton 20 Amp AFCI Circuit Breaker?
A: The installation involves plugging the AFCI breaker into an available slot in a Type BR load center and connecting the pigtail to the neutral bar. It is recommended that a qualified electrician perform the installation for safety.
Q: What is the primary benefit of using an AFCI breaker?
A: AFCI breakers help prevent electrical fires by detecting and interrupting arcing faults that traditional breakers might not catch, offering an extra layer of safety for your home.
Q: Can this breaker be used for air conditioners or heaters?
A: Yes, the 20-amp rating of this AFCI breaker makes it suitable for use with heating, air conditioning, and refrigeration equipment.
Q: How does the LED indicator help with troubleshooting?
A: The integral LED displays seven different trip causes, making it easier to identify and address specific electrical issues without extensive testing.
Q: What certifications does this breaker have?
A: The Eaton AFCI Circuit Breaker is UL Listed, ensuring it meets established safety standards.
Design with Undeniable Safety in Mind
Transform your home into a bastion of safety with the Eaton 20 Amp AFCI Circuit Breaker. Its compact design seamlessly integrates into electrical panels, minimizing visual clutter while maximizing protection. Beyond its refined appearance lies a sophisticated technology that detects and halts arcs before they become hazards. Install this essential circuit breaker to pair safety with elegance, eschewing compromise for ultimate peace of mind.
Equip your electrical system with the Eaton 20 Amp AFCI Circuit Breaker for unparalleled protection against fire risks—purchase now and secure your home today.
