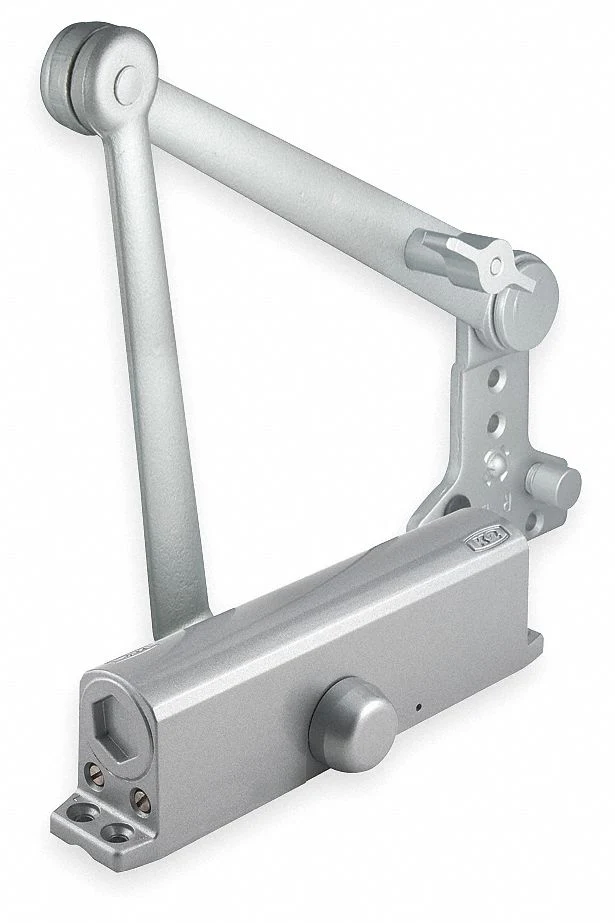

DORMAKABA QDC314NC689 Medium Duty Aluminum Door Closer
Medium Duty Aluminum Door Closer
The DORMAKABA QDC314NC689 Medium Duty Aluminum Door Closer is a reliable solution for both interior and exterior doors. Designed with adjustable mounting for standard, top frame, or parallel installations, this Grade 2 closer ensures smooth operation and durability. Ideal for professional settings, it provides safety and compliance with ADA and UL standards.
Key Features:
- Versatile Installation: Suitable for standard, top frame, or parallel mounting.
- High Durability: Grade 2 medium duty performance ideal for frequent use.
- Smooth Operation: Hydraulic mechanism ensures controlled, quiet closing.
- Fire Rated: 3-hour fire rating, UL and cUL Listed for safety assurance.
- Complete Kit: Includes all necessary hardware and hex nuts for easy installation.
Specifications Table:
| Specification | Details |
|---|---|
| Manufacturer Part Number | QDC314NC689 |
| Brand | DORMAKABA |
| Closer Mounting Type | Top Frame |
| Closer Series | QDC300 |
| Closer Stop Type | Compression |
| Closer Type | Hold Open |
| Color | Gray |
| Display Qty | 1 |
| Display Sell UOM | EA |
| Max Door Opening Angle | 120 ° |
| Finish | Aluminum |
| Fire Rating | 3 hr |
| Housing Depth | 3-1/16 in |
| Housing Height | 2-5/8 in |
| Energy Source | Hydraulic |
| Includes | Hex Nuts |
| Includes Hardware | Hardware Included |
| Door Width Campatibility | 58 in |
| Location Use | Interior/Exterior |
| Standards | UL and cUL Listed |
| UL Fire Rating | UL10C |
| Spring Type | Adjustable |
| Height Between Mounting Holes | 1-1/4 in |
| Spring Size - Minimum | 1 |
| Material | Aluminum |
| Exterior Door Width - Maximum | 54 in |
| Product Type | Door Closer |
| Projection | 3-1/8 in |
| Spring Size | 6 |
| Hand Orientation | Non-Handed |
| Housing Length | 9-13/16 in |
| Operation Style | Manual |
| Performance Duty Rating | 2 |
| Sub-brand | Dormakaba |
| Length Between Mounting Holes | 9-1/16 in |
| Ligature Resistance | Not Ligature-Resistant |
| ADA Compliant | Yes |
| Performance Rating | Grade 2 - Medium Duty |
| Finish C | Aluminum Painted ; Aluminum ; Gray |
Frequently Asked Questions (FAQ):
Q: How does the door closer adjust for different mounting types?
A: The DORMAKABA door closer can be configured to function as a standard, top frame, or parallel closer, offering flexibility based on door swing and installation preference.
Q: Is this door closer fire-rated?
A: Yes, it has a 3-hour fire rating and is UL and cUL Listed, making it suitable for use in fire-rated openings.
Q: What is the maximum door width this closer can accommodate?
A: This closer can accommodate doors up to 54 inches wide, making it suitable for both narrow and wide entries.
Q: Is the door closer ADA compliant?
A: Yes, this door closer is ADA compliant, ensuring accessibility in line with regulatory standards.
Q: Is this door closer suitable for exterior doors?
A: Yes, its durable construction and hydraulic operation make it suitable for both interior and exterior applications.
Elegance Meets Function: The Ultimate Artisan of Mobility
Transform the mundane act of opening a door into a seamless, harmonious experience with the DORMAKABA Aluminum Door Closer. Its sleek design integrates effortlessly, providing an elegant touch that complements both modern and traditional aesthetics. Imagine pairing this device with a bold front door to create a welcoming threshold that whispers sophistication. This product is not just a functional detail but a statement of style and a testament to refined living.
Elevate your entryways with seamless functionality by ordering the DORMAKABA Medium Duty Aluminum Door Closer today!
